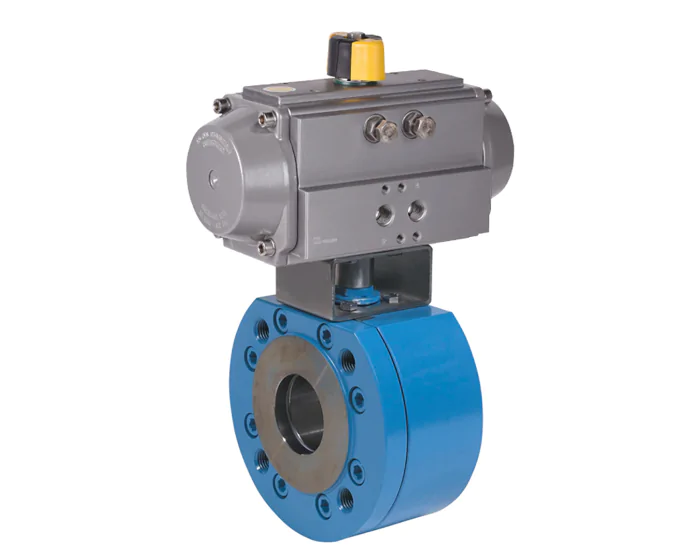

The 720 series ADLER wafer ball valve has a forged carbon steel body 1.0460, a stainless steel ball and PTFE seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 40 bar (up to DN80), TS: 180°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 35.0 |
| Body material | Carbon steel A105 (1.0460) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE - Graphite |
| PS (bar) | 40 |
| Connections | Between flanges PN40 |
| Seats | PTFE |
| Ball material | Stainless steel 304 |
| Surface temperature | TX |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Double acting |
| Ball valve design | Wafer |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | ADLER |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN15 - 1/2'' Double acting | 273701017006R | S1000386 |
€394.61
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN15 - 1/2'' Spring return | 273701017107R | S1000387 |
€456.14
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN20 - 3/4'' Double acting | 273702017006R | S1000388 |
€394.61
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN20 - 3/4'' Spring return | 273702017108R | S1000389 |
€477.36
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN25 - 1'' Double acting | 273703017006R | S1000390 |
€394.61
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN25 - 1'' Spring return | 273703017108R | S1000391 |
€477.36
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN32 - 1''1/4 Double acting | 273704017006R | S1000392 |
€408.69
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN32 - 1''1/4 Spring return | 273704017108R | S1000393 |
€591.60
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN40 - 1''1/2 Double acting | 273705017008R | S1000394 |
€550.80
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN40 - 1''1/2 Spring return | 273705017109R | S1000395 |
€644.06
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN50 - 2'' Double acting | 273706017008R | S1000396 |
€683.40
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN50 - 2'' Spring return | 273706017110R | S1000397 |
€836.40
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN65 - 2''1/2 Double acting | 273707017009R | S1000398 |
€924.00
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN65 - 2''1/2 Spring return | 273707017111R | S1000399 |
€1,175.36
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN80 - 3'' Double acting | 273708017009R | S1000400 |
€1,047.67
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN80 - 3'' Spring return | 273708017111R | S1000401 |
€1,285.71
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN100 - 4'' Double acting | 273709017010R | S1000402 |
€1,425.21
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN100 - 4'' Spring return | 273709017113R | S1000403 |
€1,963.54
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN125 - 5'' Double acting | 273710017011R | S1000404 |
€1,985.14
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN125 - 5'' Spring return | 273710017114R | S1000405 |
€2,548.51
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN150 - 6'' Double acting | 273711017012R | S1000406 |
€3,799.44
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A105 (1.0460) Full Wafer DN150 - 6'' Spring return | 273711017115R | S1000407 |
€4,757.43
(excl. btw)
|
add to cart |
